WS-C3850-48U-S

WS-C3850-48U-S

$ 3500.00

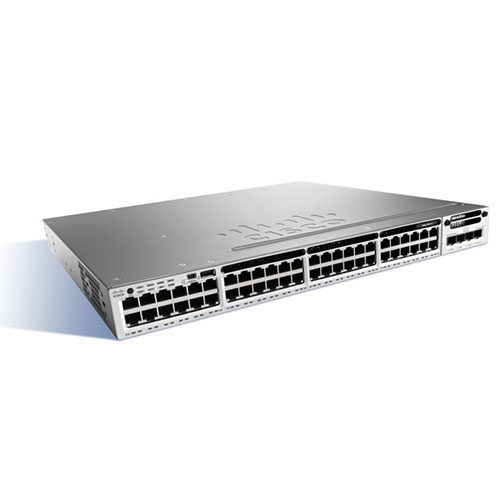

WS-C3850-48U-S Cisco Catalyst 3850-48U 48 Ports Manageable Layer 3 Switch. 4 Layer Supported – 1U High – Rack-mountable. Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply 1 RU, IP Base feature set

Cisco 3850 Series switches enable faster access, faster aggregation and are designed around 802.11ac Wave 2 and other new technologies that are here today, or coming at you tomorrow. Stackable Catalyst 3850 Series multigigabit and 10Gb switches give you wired and wireless together, so you can scale up and build a future-proof deployment strategy.

For the best Cisco 3850 Series Switch prices, call 02 9363 0700 or email sales@equipnetworks.com.au

SKU: WS-C3850-48U-S Categories: , ,

Description

WS-C3850-48U-S Cisco Catalyst 3850-48U 48 Ports Manageable Layer 3 Switch. 4 Layer Supported – 1U High – Rack-mountable. Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply 1 RU, IP Base feature set

WS-C3850-48U-S The Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise 480 technology.

The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiberbased downlink interfaces, and redundant fans and power supplies.

Cisco Catalyst 3850 Series Switches Datasheet

WS-C3850-48U-S Buy Cisco 3850 Series Switches from Equip Networks, Australia’s leading Cisco supplier. Call 02 9363 0700 or email sales@equipnetworks.com.au

Technical Specifications

General Information
Manufacturer
  • Cisco Systems, Inc
Manufacturer Part Number
  • WS-C3850-48U-S
Manufacturer Website Address
Brand Name
  • Cisco
Product Line
  • Catalyst
Product Series
  • 3850
Product Model
  • 3850-48U
Product Name
  • 3850-48U Layer 3 Switch
Product Type
  • Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports
  • 48
Token Ring Port
  • No
LRE Port
  • No
Bypass
  • No
Modular
  • No
Management Port
  • Yes
USB
  • No
Number of UPOE (RJ-45) Ports
  • 48
Stack Port
  • Yes
Port/Expansion Slot Details
  • 48 x Gigabit Ethernet Network
Media & Performance
Media Type Supported
  • Twisted Pair
Twisted Pair Cable Standard
  • Category 5
Ethernet Technology
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
Network & Communication
Layer Supported
  • 4
Management & Protocols
Manageable
  • Yes
Management
  • QoS, VLAN, Embedded Event Manager (EEM), RMON, SNMP v1, 2c, 3, MIB, DHCP, Command Line Interface (CLI)
Memory
Standard Memory
  • 4 GB
Memory Technology
  • DRAM
Flash Memory
  • 2 GB
Reliability
MTBF
  • 205110 Hour
Power Description
PoE (RJ-45) Port
  • No
Input Voltage
  • 110 V AC, 220 V AC
Power Source
  • Power Supply
Redundant Power Supply Supported
  • Yes
Physical Characteristics
Compatible Rack Unit
  • 1U
Form Factor
  • Rack-mountable
Weight (Approximate)
  • 7.98 kg

Technical Specifications

General Information
Manufacturer
  • Cisco Systems, Inc
Manufacturer Part Number
  • WS-C3850-48U-S
Manufacturer Website Address
Brand Name
  • Cisco
Product Line
  • Catalyst
Product Series
  • 3850
Product Model
  • 3850-48U
Product Name
  • 3850-48U Layer 3 Switch
Marketing Information
  • The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, redundant fans and power supplies.
Product Type
  • Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports
  • 48
Token Ring Port
  • No
LRE Port
  • No
Bypass
  • No
Modular
  • No
Management Port
  • Yes
USB
  • No
Number of UPOE (RJ-45) Ports
  • 48
Stack Port
  • Yes
Port/Expansion Slot Details
  • 48 x Gigabit Ethernet Network
Media & Performance
Media Type Supported
  • Twisted Pair
Twisted Pair Cable Standard
  • Category 5
Ethernet Technology
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
Network & Communication
Layer Supported
  • 4
Management & Protocols
Manageable
  • Yes
Management
  • QoS, VLAN, Embedded Event Manager (EEM), RMON, SNMP v1, 2c, 3, MIB, DHCP, Command Line Interface (CLI)
Memory
Standard Memory
  • 4 GB
Memory Technology
  • DRAM
Flash Memory
  • 2 GB
Reliability
MTBF
  • 205110 Hour
Power Description
PoE (RJ-45) Port
  • No
Input Voltage
  • 110 V AC, 220 V AC
Power Source
  • Power Supply
Redundant Power Supply Supported
  • Yes
Physical Characteristics
Compatible Rack Unit
  • 1U
Form Factor
  • Rack-mountable
Weight (Approximate)
  • 7.98 kg
