WS-C3850-48PW-S

WS-C3850-48PW-S

$ 4250.00

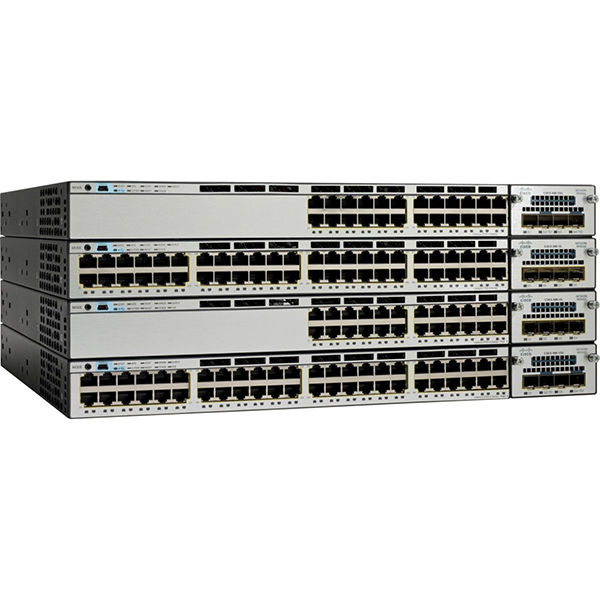

WS-C3850-48PW-S Cisco Catalyst 48 Ports Manageable Layer 3 Switch 48 Network – Twisted Pair – 3 Layer Supported – 1U High – Rack-mountable IP Base with 5 access point license

Cisco 3850 Series switches enable faster access, faster aggregation and are designed around 802.11ac Wave 2 and other new technologies that are here today, or coming at you tomorrow. Stackable Catalyst 3850 Series multigigabit and 10Gb switches give you wired and wireless together, so you can scale up and build a future-proof deployment strategy.

For the best Cisco 3850 Series Switch prices, call 02 9363 0700 or email sales@equipnetworks.com.au

SKU: WS-C3850-48PW-S Categories: , ,

Description

WS-C3850-48PW-S Cisco Catalyst 48 Ports Manageable Layer 3 Switch 48 Network – Twisted Pair – 3 Layer Supported – 1U High – Rack-mountable IP Base with 5 access point license

WS-C3850-48PW-S The Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise 480 technology.

The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiberbased downlink interfaces, and redundant fans and power supplies.

Cisco Catalyst 3850 Series Switches Datasheet

WS-C3850-48PW-S Buy Cisco 3850 Series Switches from Equip Networks, Australia’s leading Cisco supplier. Call 02 9363 0700 or email sales@equipnetworks.com.au

Technical Specifications

General Information
Manufacturer
  • Cisco Systems, Inc
Manufacturer Part Number
  • WS-C3850-48PW-S
Manufacturer Website Address
Brand Name
  • Cisco
Product Line
  • Catalyst
Product Series
  • 3850
Product Model
  • WS-C3850-48PW-S
Product Name
  • Catalyst WS-C3850-48PW-S Layer 3 Switch Full PoE w/ 5 AP license IP Base
Product Type
  • Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports
  • 48
Token Ring Port
  • No
LRE Port
  • No
Bypass
  • No
Modular
  • Yes
Management Port
  • Yes
USB
  • Yes
Number of PoE+ (RJ-45) Ports
  • 48
Stack Port
  • Yes
Media & Performance
Media Type Supported
  • Twisted Pair
Twisted Pair Cable Standard
  • Category 5e
Ethernet Technology
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots
  • 1
Network & Communication
Layer Supported
  • 3
Management & Protocols
Manageable
  • Yes
Management
  • MIB, RMON I and II, SNMPv1, v2c, v3, QOS, VLAN, DHCP
Memory
Standard Memory
  • 4 GB
Memory Technology
  • DRAM
Flash Memory
  • 2 GB
Reliability
MTBF
  • 241050 Hour
Power Description
PoE (RJ-45) Port
  • Yes
Input Voltage
  • 110 V AC, 220 V AC
Power Source
  • Power Supply
Redundant Power Supply Supported
  • Yes
Physical Characteristics
Compatible Rack Unit
  • 1U
Form Factor
  • Rack-mountable
Height
  • 44.5 mm
Width
  • 444.5 mm
Depth
  • 449.6 mm
Weight (Approximate)
  • 7.89 kg
Miscellaneous
Package Contents
  • Catalyst WS-C3850-48P-S Layer 3 Switch, 715W AC Power Supply, StackWise 0.5-meter Cable
Certifications & Standards
  • IEEE Standards:802.1w, 802.11, 802.1x, 802.1x-Rev, 802.3ad, 802.3af, 802.3at, 802.3x, 802.1D, 802.1p, 802.1Q, 802.3, 802.3u, 802.3ab, 802.3z, 802.1sSafety Certifications:, UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, GOST, NOMElectromagnetic Emissions Certifications:, FCC Part 15 (CFR 47) Class A, ICES-003 Class A, EN 55022 Class A, CISPR 22 Class A, AS/NZS 3548 Class A, BSMI Class A (AC input models only), VCCI Class A, EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1
Environmentally Friendly
  • Yes
Environmental Certification
  • RoHS-5
Warranty
Limited Warranty
  • 90 Day

Technical Specifications

General Information
Manufacturer
  • Cisco Systems, Inc
Manufacturer Part Number
  • WS-C3850-48PW-S
Manufacturer Website Address
Brand Name
  • Cisco
Product Line
  • Catalyst
Product Series
  • 3850
Product Model
  • WS-C3850-48PW-S
Product Name
  • Catalyst WS-C3850-48PW-S Layer 3 Switch Full PoE w/ 5 AP license IP Base
Marketing Information
  • The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.
Product Type
  • Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports
  • 48
Token Ring Port
  • No
LRE Port
  • No
Bypass
  • No
Modular
  • Yes
Management Port
  • Yes
USB
  • Yes
Number of PoE+ (RJ-45) Ports
  • 48
Stack Port
  • Yes
Media & Performance
Media Type Supported
  • Twisted Pair
Twisted Pair Cable Standard
  • Category 5e
Ethernet Technology
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots
  • 1
Network & Communication
Layer Supported
  • 3
Management & Protocols
Manageable
  • Yes
Management
  • MIB, RMON I and II, SNMPv1, v2c, v3, QOS, VLAN, DHCP
Memory
Standard Memory
  • 4 GB
Memory Technology
  • DRAM
Flash Memory
  • 2 GB
Reliability
MTBF
  • 241050 Hour
Power Description
PoE (RJ-45) Port
  • Yes
Input Voltage
  • 110 V AC, 220 V AC
Power Source
  • Power Supply
Redundant Power Supply Supported
  • Yes
Physical Characteristics
Compatible Rack Unit
  • 1U
Form Factor
  • Rack-mountable
Height
  • 44.5 mm
Width
  • 444.5 mm
Depth
  • 449.6 mm
Weight (Approximate)
  • 7.89 kg
Miscellaneous
Package Contents
  • Catalyst WS-C3850-48P-S Layer 3 Switch, 715W AC Power Supply, StackWise 0.5-meter Cable
Certifications & Standards
  • IEEE Standards:802.1w, 802.11, 802.1x, 802.1x-Rev, 802.3ad, 802.3af, 802.3at, 802.3x, 802.1D, 802.1p, 802.1Q, 802.3, 802.3u, 802.3ab, 802.3z, 802.1sSafety Certifications:, UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, GOST, NOMElectromagnetic Emissions Certifications:, FCC Part 15 (CFR 47) Class A, ICES-003 Class A, EN 55022 Class A, CISPR 22 Class A, AS/NZS 3548 Class A, BSMI Class A (AC input models only), VCCI Class A, EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1
Environmentally Friendly
  • Yes
Environmental Certification
  • RoHS-5
Warranty
Limited Warranty
  • 90 Day
