WS-C3850-32XS-S

WS-C3850-32XS-S

POA

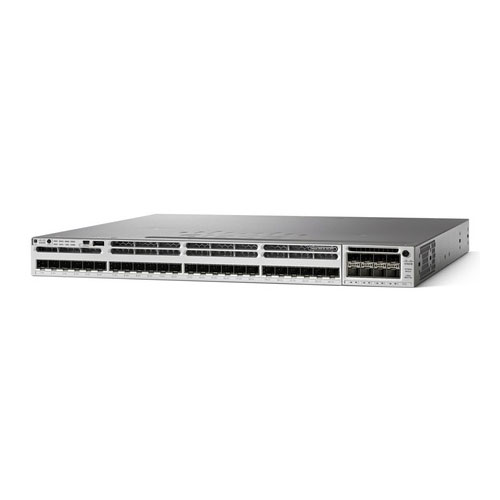

WS-C3850-32XS-S Cisco Catalyst 3850 24 SFP+ port stackable model, with C3850-NM-8-10G module and 715WAC power supply. 1 RU, IP Base feature set

Cisco 3850 Series switches enable faster access, faster aggregation and are designed around 802.11ac Wave 2 and other new technologies that are here today, or coming at you tomorrow. Stackable Catalyst 3850 Series multigigabit and 10Gb switches give you wired and wireless together, so you can scale up and build a future-proof deployment strategy.

For the best Cisco 3850 Series Switch prices, call 02 9363 0700 or email sales@equipnetworks.com.au

SKU: WS-C3850-32XS-S Categories: , ,

Description

WS-C3850-32XS-S Cisco Catalyst 3850 24 SFP+ port stackable model, with C3850-NM-8-10G module and 715WAC power supply. 1 RU, IP Base feature set

WS-C3850-32XS-S The Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise 480 technology.

The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiberbased downlink interfaces, and redundant fans and power supplies.

 Cisco Catalyst 3850 Series Switches Datasheet

WS-C3850-32XS-S Buy Cisco 3850 Series Switches from Equip Networks, Australia’s leading Cisco supplier. Call 02 9363 0700 or email sales@equipnetworks.com.au

Technical Specifications

General Information
Manufacturer
  • Cisco Systems, Inc
Manufacturer Part Number
  • WS-C3850-32XS-S
Manufacturer Website Address
Brand Name
  • Cisco
Product Line
  • Catalyst
Product Series
  • 3850
Product Model
  • WS-C3850-32XS
Product Name
  • Catalyst WS-C3850-32XS Layer 3 Switch
Product Type
  • Layer 3 Switch
Interfaces/Ports
Modular
  • No
Stack Port
  • Yes
Port/Expansion Slot Details
  • 24 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
  • Optical Fiber
Ethernet Technology
  • 10 Gigabit Ethernet
Network Technology
  • 10GBase-X
I/O Expansions
Number of Total Expansion Slots
  • 24
Expansion Slot Type
  • SFP+
Number of SFP+ Slots
  • 24
Network & Communication
Layer Supported
  • 3
Management & Protocols
Manageable
  • Yes
Power Description
Power Source
  • Power Supply
Redundant Power Supply Supported
  • Yes
Physical Characteristics
Compatible Rack Unit
  • 1U
Form Factor
  • Rack-mountable
Height
  • 44.5 mm
Width
  • 449.6 mm
Depth
  • 444.5 mm
Weight (Approximate)
  • 7.21 kg

Technical Specifications

General Information
Manufacturer
  • Cisco Systems, Inc
Manufacturer Part Number
  • WS-C3850-32XS-S
Manufacturer Website Address
Brand Name
  • Cisco
Product Line
  • Catalyst
Product Series
  • 3850
Product Model
  • WS-C3850-32XS
Product Name
  • Catalyst WS-C3850-32XS Layer 3 Switch
Marketing Information
  • The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
Product Type
  • Layer 3 Switch
Interfaces/Ports
Modular
  • No
Stack Port
  • Yes
Port/Expansion Slot Details
  • 24 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
  • Optical Fiber
Ethernet Technology
  • 10 Gigabit Ethernet
Network Technology
  • 10GBase-X
I/O Expansions
Number of Total Expansion Slots
  • 24
Expansion Slot Type
  • SFP+
Number of SFP+ Slots
  • 24
Network & Communication
Layer Supported
  • 3
Management & Protocols
Manageable
  • Yes
Power Description
Power Source
  • Power Supply
Redundant Power Supply Supported
  • Yes
Physical Characteristics
Compatible Rack Unit
  • 1U
Form Factor
  • Rack-mountable
Height
  • 44.5 mm
Width
  • 449.6 mm
Depth
  • 444.5 mm
Weight (Approximate)
  • 7.21 kg
