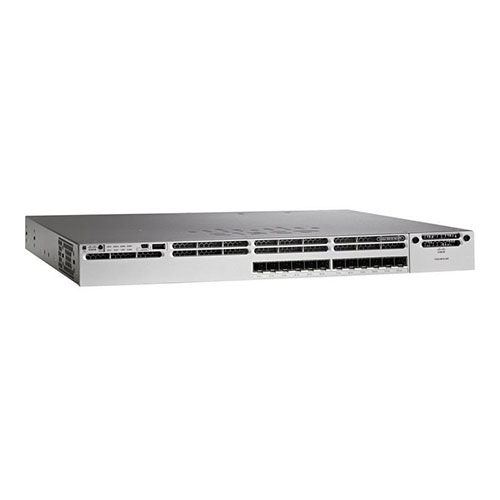

WS-C3850-12XS-E-RF

WS-C3850-12XS-E-RF

$ 1900.00

WS-C3850-12XS-E-RF Cisco Catalyst WS-C3850-12XS Manageable Layer 3 Switch. Stackable 12 SFP+ Ethernet ports, with 350WAC power supply 1 RU, IP Services feature set (Refurbished).

Cisco 3850 Series switches enable faster access, faster aggregation and are designed around 802.11ac Wave 2 and other new technologies that are here today, or coming at you tomorrow. Stackable Catalyst 3850 Series multigigabit and 10Gb switches give you wired and wireless together, so you can scale up and build a future-proof deployment strategy.

For the best Cisco 3850 Series Switch prices, call 02 9363 0700 or email sales@equipnetworks.com.au



SKU: WS-C3850-12XS-E-RF Categories: , ,

Description

WS-C3850-12XS-E-RF Cisco Catalyst WS-C3850-12XS Manageable Layer 3 Switch. Stackable 12 SFP+ Ethernet ports, with 350WAC power supply 1 RU, IP Services feature set (Refurbished).

WS-C3850-12XS-E-RF The Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise 480 technology.

The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiberbased downlink interfaces, and redundant fans and power supplies.

Cisco Catalyst 3850 Series Switches Datasheet

WS-C3850-12XS-E-RF Buy Cisco 3850 Series Switches from Equip Networks, Australia’s leading Cisco supplier. Call 02 9363 0700 or email sales@equipnetworks.com.au

Technical Specifications

Main Features
Manufacturer
Cisco Systems, Inc
Manufacturer Part Number
WS-C3850-12XS-E-RF
Manufacturer Website Address
http://www.cisco.com/c/en_au
Brand Name
Cisco
Product Line
Catalyst
Product Series
3850
Product Model
WS-C3850-12XS
Product Name
Catalyst WS-C3850-12XS Layer 3 Switch
Product Type
Layer 3 Switch
Main Features
Token Ring Port
No
LRE Port
No
Bypass
No
Management Port
Yes
USB
Yes
Number of PoE+ (RJ-45) Ports
24
Port/Expansion Slot Details
12 x 10 Gigabit Ethernet Expansion Slot
Main Features
Media Type Supported
Optical Fiber
Twisted Pair Cable Standard
Category 5e
Ethernet Technology
10 Gigabit Ethernet
Network Technology
10GBase-X
Marketing Information
Main Features
Layer Supported
3
Main Features
Manageable
Yes
Management
MIB, RMON I and II, SNMPv1, v2c, v3, QOS, VLAN, DHCP
Main Features
Standard Memory
4 GB
Memory Technology
DRAM
Flash Memory
2 GB
Main Features
MTBF
269450 Hour
Main Features
PoE (RJ-45) Port
Yes
Input Voltage
110 V AC, 220 V AC
Power Source
Power Supply
Redundant Power Supply Supported
Yes
Main Features
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
44.5 mm
Width
444.5 mm
Depth
449.6 mm
Weight (Approximate)
5.80 kg

Technical Specifications

Main Features
Manufacturer
Cisco Systems, Inc
Manufacturer Part Number
WS-C3850-12XS-E-RF
Manufacturer Website Address
http://www.cisco.com/c/en_au
Brand Name
Cisco
Product Line
Catalyst
Product Series
3850
Product Model
WS-C3850-12XS
Product Name
Catalyst WS-C3850-12XS Layer 3 Switch
Marketing Information
The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
Product Type
Layer 3 Switch
Main Features
Token Ring Port
No
LRE Port
No
Bypass
No
Management Port
Yes
USB
Yes
Number of PoE+ (RJ-45) Ports
24
Port/Expansion Slot Details
12 x 10 Gigabit Ethernet Expansion Slot
Main Features
Media Type Supported
Optical Fiber
Twisted Pair Cable Standard
Category 5e
Ethernet Technology
10 Gigabit Ethernet
Network Technology
10GBase-X
Marketing Information
Main Features
Layer Supported
3
Main Features
Manageable
Yes
Management
MIB, RMON I and II, SNMPv1, v2c, v3, QOS, VLAN, DHCP
Main Features
Standard Memory
4 GB
Memory Technology
DRAM
Flash Memory
2 GB
Main Features
MTBF
269450 Hour
Main Features
PoE (RJ-45) Port
Yes
Input Voltage
110 V AC, 220 V AC
Power Source
Power Supply
Redundant Power Supply Supported
Yes
Main Features
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
44.5 mm
Width
444.5 mm
Depth
449.6 mm
Weight (Approximate)
5.80 kg
