WS-C2960XR-24PS-I

WS-C2960XR-24PS-I

$ 2750.00

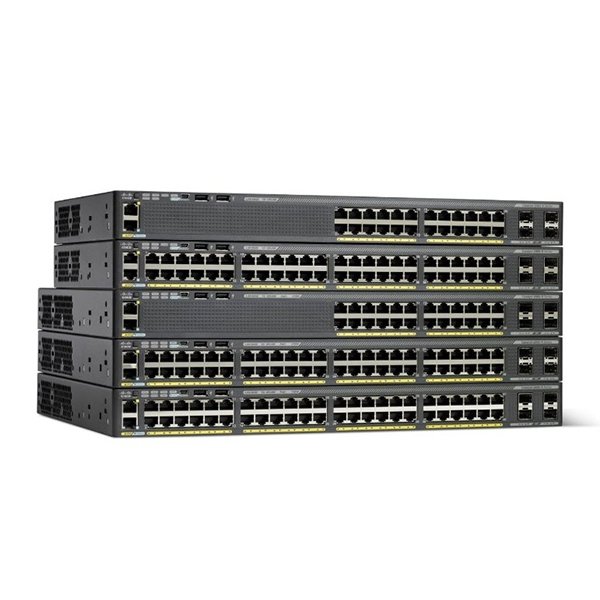

WS-C2960XR-24PS-I Catalyst 2960-XR 24 GigE PoE 370W, 4 x 1G SFP, IP Lite

Available from Equip Networks – Call 02 9363 0700 or email sales@equipnetworks.com.au

SKU: WS-C2960XR-24PS-I Categories: , ,

Description

WS-C2960XR-24PS-I Catalyst 2960-XR 24 GigE PoE 370W, 4 x 1G SFP, IP Lite

Cisco Catalyst 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. They operate on Cisco IOS Software and support simple device management as well as network management.

The Cisco Catalyst 2960-XR Series provide easy device onboarding, configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.

Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C2960XR-24PS-I
Manufacturer Website Address: http://www.cisco.com/c/en_au
Brand Name: Cisco
Product Line: Catalyst
Product Series: 2960-XR
Product Model: 2960XR-24PS-I
Product Name: Catalyst 2960XR-24PS-I Ethernet Switch
Product Type: Ethernet Switch

Dual redundant power supplies are supported on the Cisco Catalyst 2960-XR Series Switches. These switches ship with one power supply by default. The second power supply can be purchased at the time of ordering the switch or as a spare. These power supplies have built-in fans to provide cooling.

Cisco 2960-XR Power Supplies

Cisco 2960-XR Power Supplies



Cisco FlexStack-Plus (C2960X-STACK) provides stacking of up to eight Cisco Catalyst 2960-XR Series Switches with the optional FlexStack-Plus module. The FlexStack-Plus module is hot swappable and can be added to any Cisco Catalyst 2960-X or 2960-XR Series Switch with a FlexStack-Plus slot. Switches connected to a stack will automatically upgrade to the stack’s Cisco IOS Software version and transparently join the stack without additional intervention.

WS-C2960XR-24PS-I Available from Equip Networks call 02 9363 0700 or email sales@equipnetworks.com.au

Technical Specifications

Manufacturer:

Cisco Systems, Inc

Manufacturer Part Number:

WS-C2960XR-24PS-I

Manufacturer Website Address:

http://www.cisco.com/c/en_au

Brand Name:

Cisco

Product Line:

Catalyst

Product Series:

2960-XR

Product Model:

2960XR-24PS-I

Product Name:

Catalyst 2960XR-24PS-I Ethernet Switch

Marketing Information:

Catalyst 2960-X series Software Features

All Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.

LAN Lite models have reduced functionality and scalability for small deployments with basic requirements. Cisco Catalyst 2960-X Family of Switches are available with the LAN Base and LAN Lite feature sets and Catalyst 2960-XR Family of switches are available IP Lite feature sets.

Note that each switch model is tied to a specific feature level; LAN Lite cannot be upgraded to LAN Base and LAN Base cannot be upgraded to IP Lite.

Product Type:

Ethernet Switch

Total Number of Network Ports:

24

Token Ring Port:

No

LRE Port:

No

Bypass:

No

Modular:

No

Management Port:

Yes

USB:

Yes

Number of PoE (RJ-45) Ports:

12

Number of PoE+ (RJ-45) Ports:

12

Port/Expansion Slot Details:

  • 24 x Gigabit Ethernet Network
  • 4 x Gigabit Ethernet Expansion Slot

Media Type Supported:

Twisted Pair

Twisted Pair Cable Standard:

Category 5

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T

Number of Total Expansion Slots:

4

Expansion Slot Type:

SFP

Number of SFP Slots:

4

Layer Supported:

3

Manageable:

Yes

Management:

  • Web-based Management
  • VLAN
  • QoS
  • Syslog
  • Telnet
  • RMON I, II
  • SNMP v1, v2c, v3
  • DHCP
  • CLI

Standard Memory:

512 MB

Memory Technology:

DRAM

Flash Memory:

128 MB

MTBF:

321290 Hour

PoE (RJ-45) Port:

Yes

Input Voltage:

  • 110 V AC
  • 220 V AC

Power Source:

Power Supply

Redundant Power Supply Supported:

Yes

Form Factor:

Rack-mountable

Height:

44.5 mm

Width:

444.5 mm

Depth:

406.4 mm

Weight (Approximate):

6.21 kg

Warranty

The lowest prices guaranteed:

Equip Networks provides the highest quality products at the lowest possible prices for our clients. Please contact us if you see a lower price and we guarantee to beat any genuine offer from a competitor.

100% Quality Assurance:

All items sold by Equip Networks are ORIGINAL and GENUINE OEM only.
Used & refurbished items are fully tested (to port level), guaranteed to be completely functional and fully refurbished by our in-house Cisco-certified Engineers.

100% Money Back Guarantee:

As long as your equipment is still covered by warranty, you can contact our customer service team to exchange or return any faulty product that you have purchased from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products experience a failure, you must contact your sales representative to verify the product issue. If the problem cannot be corrected by remote support methods i.e. email or phone support, the RMA process will commence immediately.
