Description

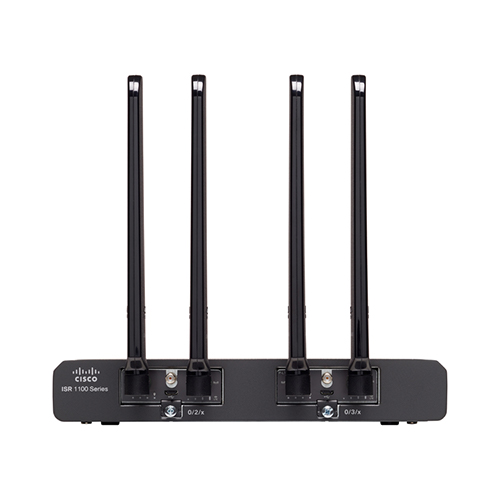

C1109-4PLTE2PWZ ISR 1109 M2M GE ETHERNET LTE ADV 2 PLUGGABLES AND 802.11AC
C1109-4PLTE2PWZ The Cisco 1000 Series ISR platform with a small form factor is designed for small to medium size businesses, enterprise branches as well as managed services environments. These routers are supplied in two options: an 8-LAN-port option and a 4-LAN-port. They are designed with high performance in mind, with Gigabit Ethernet packet forwarding capabilities. The multicore architecture has capabilities for data plane and control plane. The 1000 Series ISRs support Power over Ethernet (PoE) and PoE+ to power branch devices such as IP phones and cameras. These routers are easy to deploy, with Plug and-Play capability, thus negating excessive engineering/configuration charges. There are multiple combinations to choose from; LAN, WLAN, WAN, and LTE , depending on your specific requirements. The 1000 Series can be used in ATMs, retail stores, and kiosks, as well as for various other bespoke purposes.
Technical Specifications
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
1000
Product Model:
C1109-4PLTE2PWZ
Product Name:
C1109-4PLTE2PWZ Modem/Wireless Router
Marketing Information:
Cisco 1000 Series Integrated Services Routers (ISRs) with Cisco IOS XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with separate data and control plane capabilities.
The Cisco 1000 Series ISRs are well suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices, in service provider managed environments as well as smaller form factor and M2M use cases.
Product Type:
Modem/Wireless Router
Wireless Specifications
Broadband Transmission Technology:
Cellular
Cellular Generation:
4G
Cellular Data Connectivity Technology:
LTE Advanced
Total Number of Antennas:
4
Number of External Antennas:
4
Interfaces/Ports
Number of Network (RJ-45) Ports:
4
USB:
Yes
Number of Broadband (RJ-45) Ports:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
VPN Supported:
Yes
Multi-SIM Supported:
Yes
Number of SIM Card Supported:
2
SIM Size Supported:
Micro
Physical Characteristics
Form Factor:
Desktop
Height:
43.4 mm
Width:
283.5 mm
Depth:
248.9 mm
Weight (Approximate):
2.69 kg
