ACX500-DC

Description

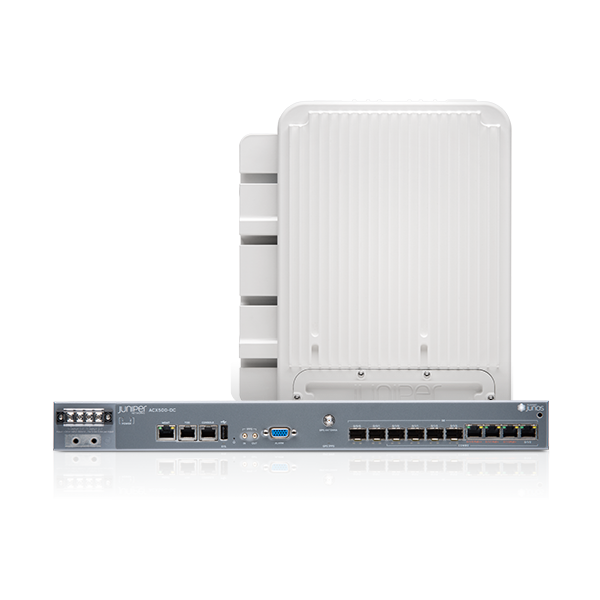

ACX500 fanless mobile backhaul routers, certified for indoor and outdoor use in utilities and railways, deliver up to 6 Gbps throughput and support an integrated, software-enabled GPS receiver. With a raft of targeted security and management capabilities, the ACX500 is ideally suited for small-cell applications. A 1 U fanless mobile backhaul router, the ACX500 comes with integrated GPS support and delivers 6 Gbps of throughput via fixed configuration Ethernet interfaces. Three compact form factors are available to meet your specific mobile backhaul needs: ACX500 for indoor deployment and ACX500-O and ACX500-O-PoE for outdoor deployment. The temperature-hardened ACX500 indoor model provides four copper 10/100/1000 Mbps ports and two fiber 1 Gbps ports, while the environmentally hardened ACX500-O and ACX500-O-PoE outdoor models provide three copper ports and three fiber ports. Both the ACX500 and the ACX500-O-PoE support Class 3 Power over Ethernet (PoE), with a power budget of 80W.
